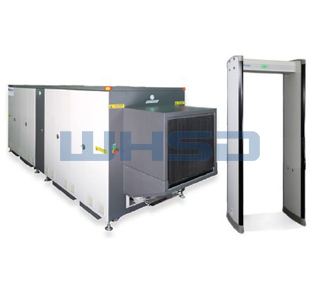

產品簡介：美國RapiScan 632XR進口X光機是一款1,500毫米(59.1英寸)寬x 1,650毫米(65.0英寸)高隧道的大型貨物安全檢查設備，可以檢測3,000公斤(6,600磅)重量的貨物，是貨物安全檢查的首選安檢儀。
特點：
●1.5m*1.6m大通道進口檢測設備。
●物流中心、碼頭貨物安檢首選產品。
其他特點：
Rapiscan的OS600軟件。
高清圖像顯示效果。
Rapiscan的創新檢測私偵查技術。
危險物品深色彩顯示效果。
物理規格：

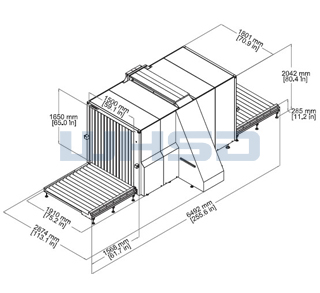

維度： 長度： 6,492毫米(255.6 in.)
高度： 2,042毫米(80.4 in.)
寬度： 2,874毫米(113.1 in.)
隧道大小： 1,500毫米(w) x 1,650毫米(h) (59.1 x 65.0 in.)
傳動機速度： 0.10到0.20 m/sec (19.7到39.4英尺或分鐘)
傳動機最大載荷： 3,000公斤(6,614磅)均勻地分布了
傳動機高度： 285毫米(11.2 in.)
近似重量： 網： 2,154公斤(4,749磅)
總： 3,500公斤(7,716磅)
系統力量： 115 VAC +/- 10%/50或60Hz/10安培或230 VAC +/- 10%/50或60Hz/5安培
X-射線發電器和圖象表現：
鋼滲透： 保證的35毫米
導線標準： 38保證的AWG， 標準40AWG。
發電器冷卻： 強制性冷卻。
陽極電壓： 操作在150kV
管電流： 1.5 mA
取向： 水平
操作環境：
存貯溫度： -20ºC對50ºC
操作溫度： 0ºC對40ºC
相對濕度： 5到95%不冷凝。
安全標準：
所有Rapiscan系統產品遵照可適用國際健康與安全章程，包括美國食品與藥物管理局X射線輻射系統檢測標準(聯邦標準21CFR 1020.40)。
外面盤區域最大漏出輻射較少比0.1mR/hr
英文參數：
With a generous tunnel opening,a heavy-duty roller bed, and two options of X-ray generator, the Rapiscan 632XR is designed to inspect pallets and other large cargo weighing up to 3,000 Kgs (6,600 pounds) without compromising throughput. ISO Standard 6780 pallet types and lower deck pallet types shipments can be screened wrapped or break bulk for maximum operational flexibility. With high resolution imaging, abundant image processing tools and two automatic detection features operators can detect potential threats, counter trade fraud and identify contraband.
The Rapiscan 632XR meets the most rigorous detection and image quality requirements as set by the U.S. Transportation Security Administration (TSA), U.K. Department of Transport (DfT), E.U. European Civil Aviation Conference (ECAC) and French civil aviation authority (STAC).
Feature and Option Highlights
Greatest Number of Operator-Assist Tools Enables Highest Throughput
With over 14 image processing tools and 2 automatic detection functions, the feature rich software helps the operator easily and accurately detect contraband for the highest throughput and least operator fatigue.
Regulatory Approved Threat Image Projection (TIP) and Tip Network (TIPNet)
Threat Image Projection (TIP) is the preferred operator performance training and measurement tool used by regulatory agencies worldwide. Digital images of potential threats, are interlaced with scanned object. The program gives supervisors and managers real-time feedback on operators’ performance and helps to keep operators alert and aware.
Automatic Detection of Explosives
Target™ automatically detects a wide range of explosives in real time during the scanning process by visibly highlighting a potential threat on the X-ray image.
Density Threshold Alert (DTA
DTA generates a visible alarm when an imaged object exceeds a user-specified density threshold.
